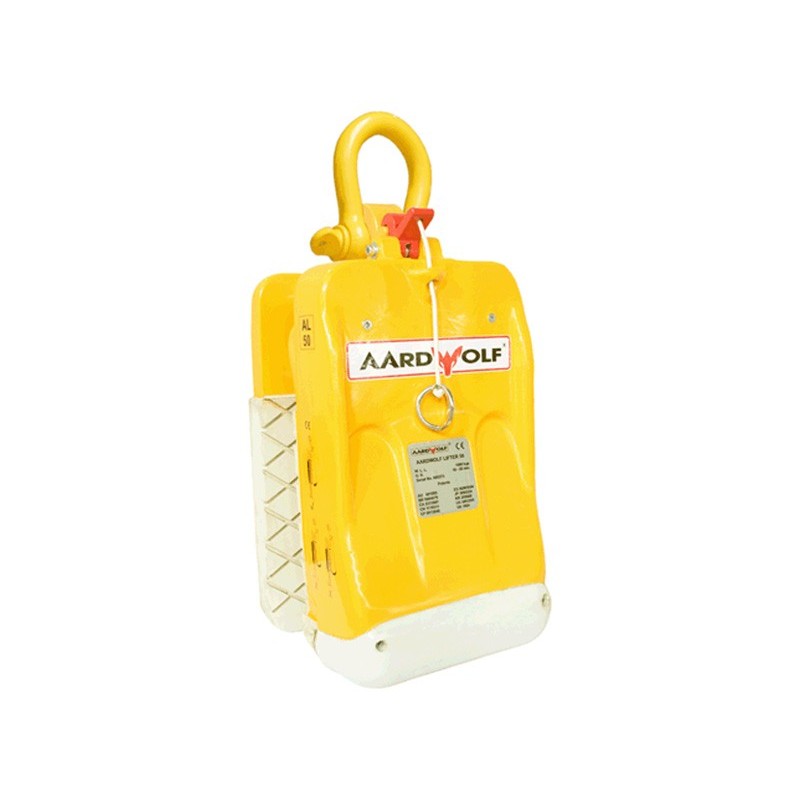

Aardwolf Slab Lifter 50 - AL50

Aardwolf Lifter 50

The patented Aardwolf Lifter is an accessory for lifting and moving slab-form loads.  The Aardwolf Lifters incorporate a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground.  This makes the process of lifting and lowering of slabs a one-man operation.


Application

For lifting 10 to 50mm thick material (WLL 1200kg).


Features

Size: Being of a compact construction, the Aardwolf Lifter 50 allows for close packed slabs to be lifted out of racks and containers.  Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.

Versatile: Ideal for construction work, because the clamping mechanism is at the front of the slab, this allows panels to be placed close against walls.

Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.

Secure: The Aardwolf clamps grip slabs firmly.  The Aardwolf Lifter 50 has a force multiplying factor of approximately 2.5 to 1.
